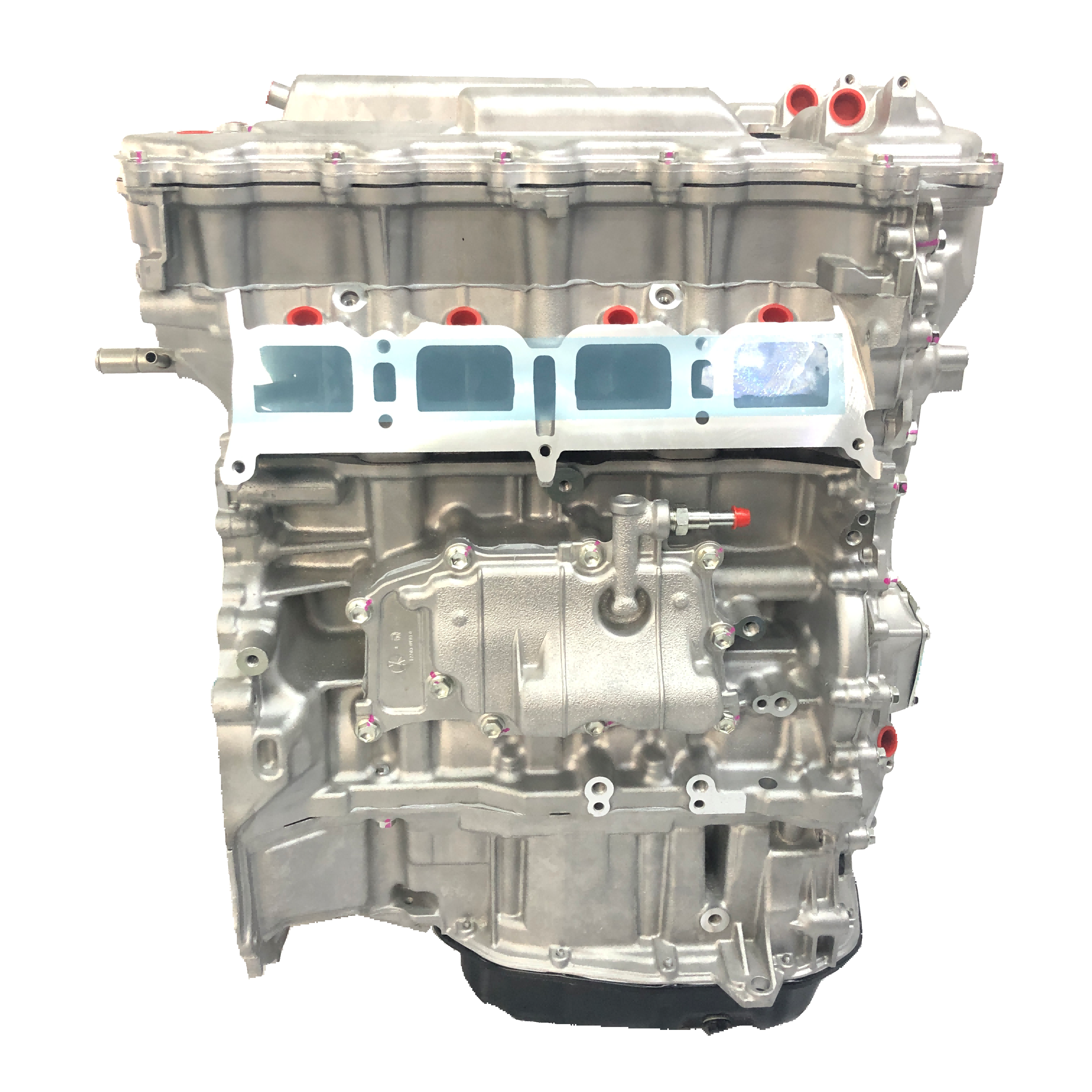

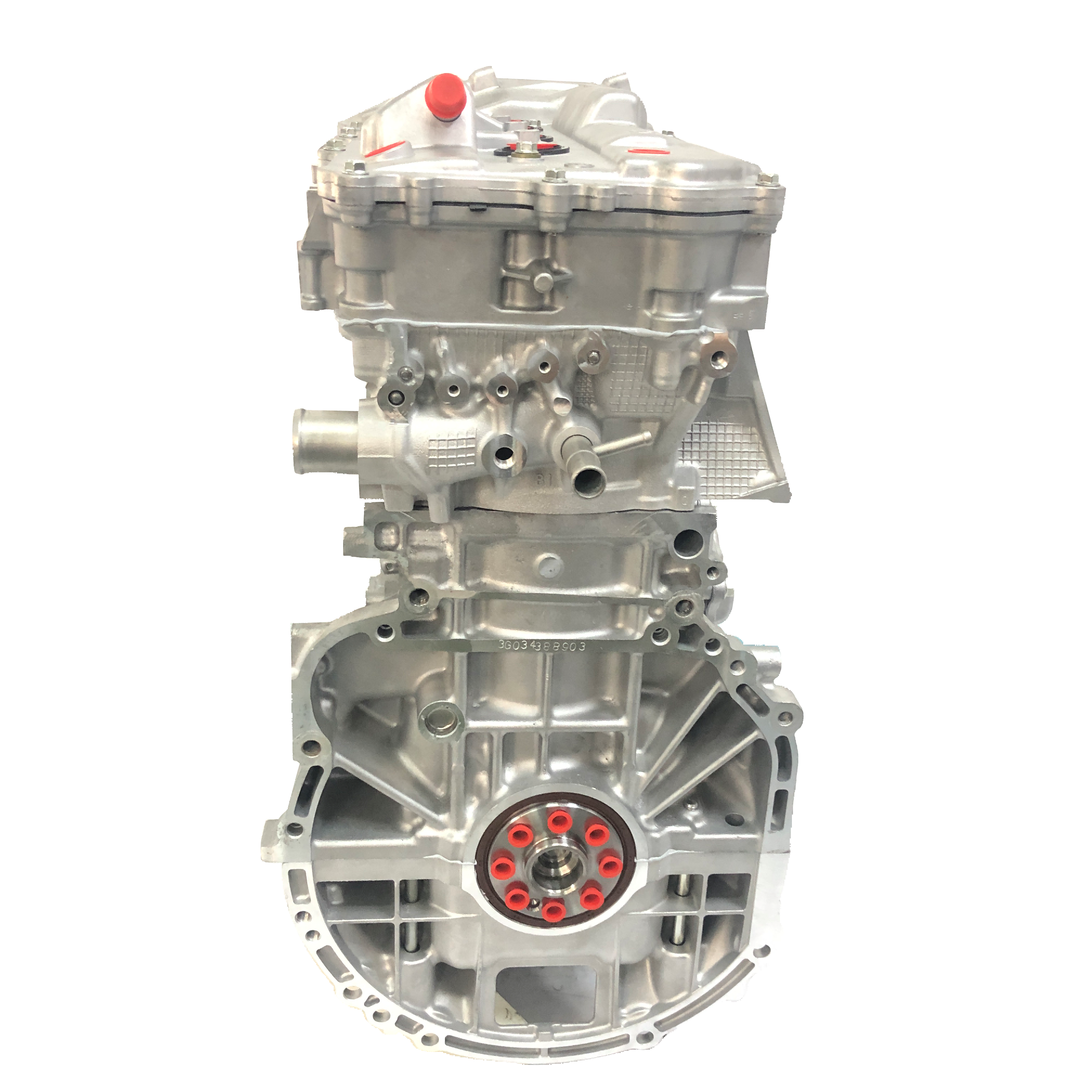

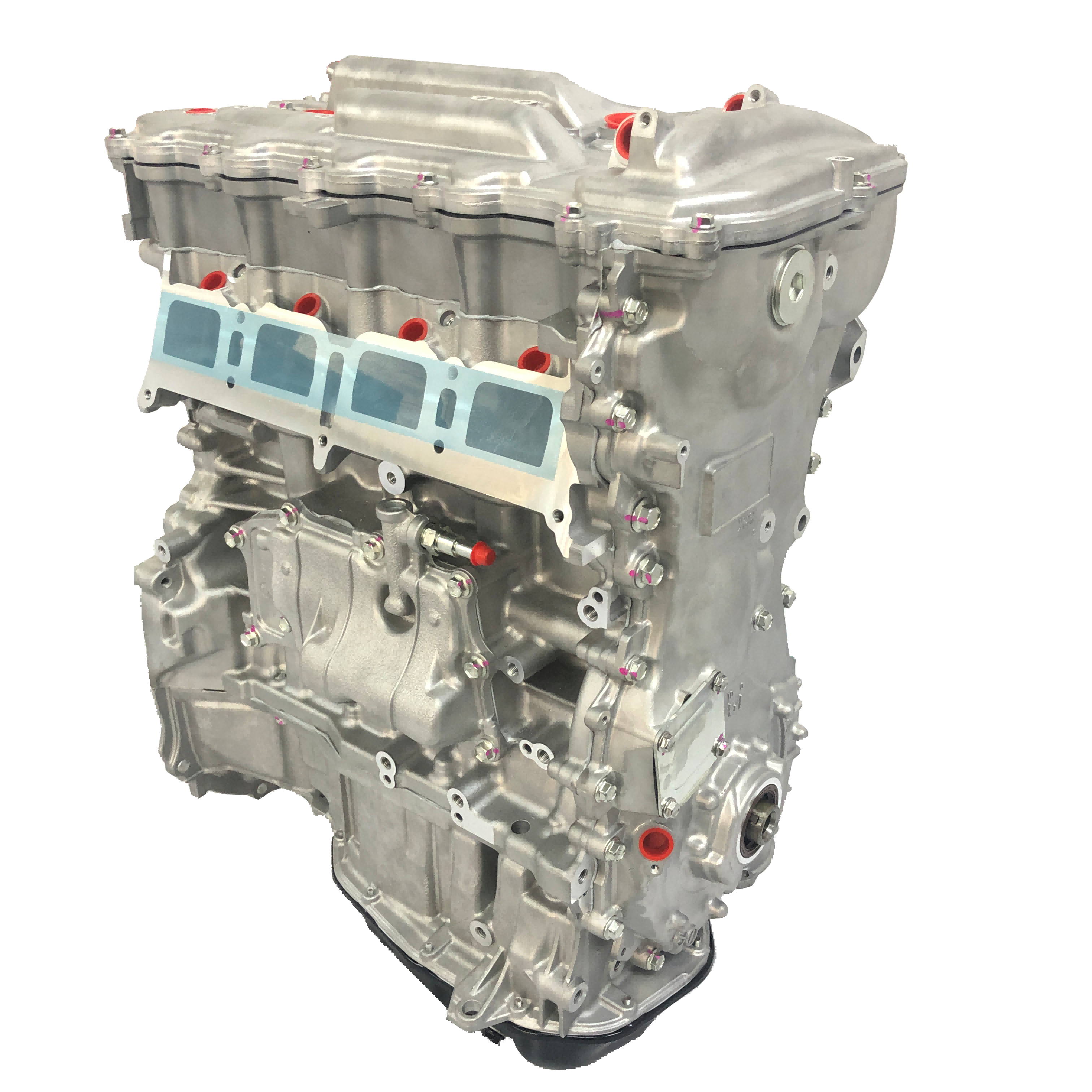

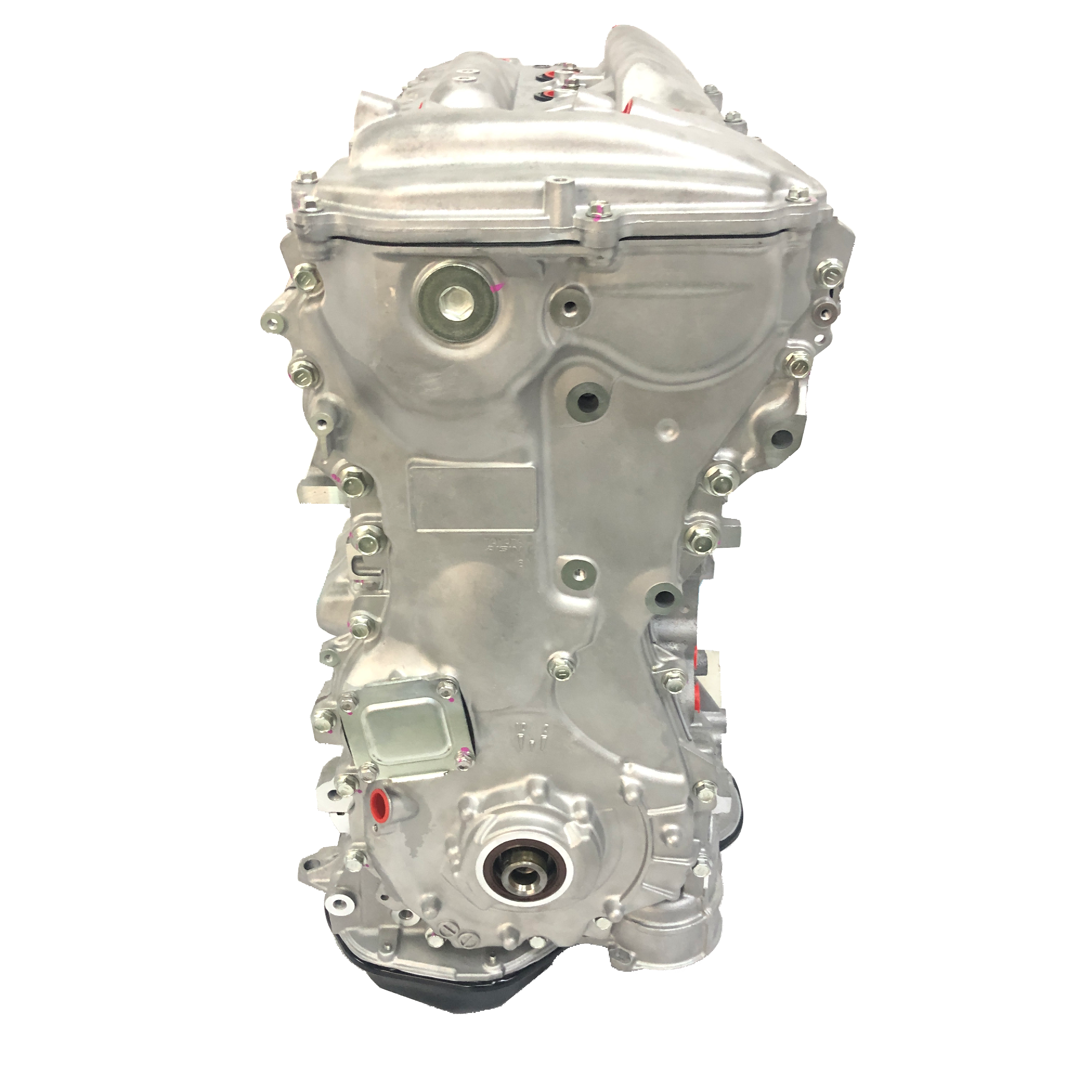

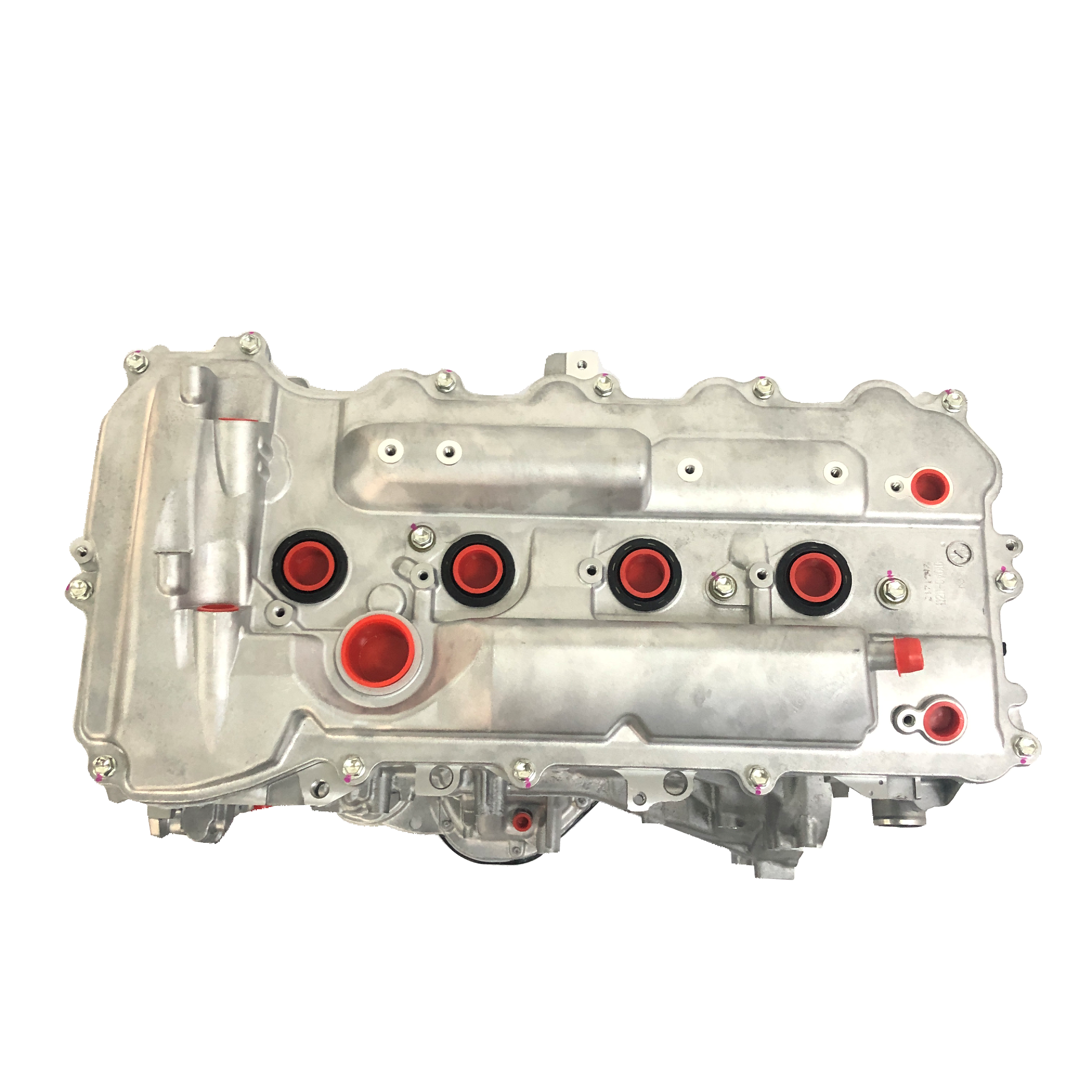

Toyota 1AR-FE 2.7L Engine Assembly

The Toyota 1AR-FE is a reliable and efficient 2.7-liter inline 4-cylinder engine designed for a variety of Toyota SUVs and MPVs. Featuring advanced Dual VVT-i technology and a robust construction, this engine delivers smooth power and excellent fuel economy.

Key Specifications:

• Engine Code: 1AR-FE
• Displacement: 2672 cc (2.7 liters)
• Configuration: Inline 4-cylinder, DOHC, 16 valves
• Aspiration: Naturally Aspirated
• Fuel System: Sequential Multi-Point Fuel Injection (SFI)
• Bore x Stroke: 90.0 mm × 105.0 mm
• Compression Ratio: 10.0:1
• Maximum Power: ~187 hp (139 kW) @ 5800 rpm
• Maximum Torque: ~252 Nm (186 lb-ft) @ 4100 rpm
• Timing: Chain-driven
• VVT-i: Dual VVT-i on intake and exhaust cams

Applications:

This engine is commonly found in:

• Toyota Highlander / Kluger
• Toyota Venza
• Toyota Sienna
• Toyota Alphard / Vellfire (2.7L variants)
• Toyota Tarago / Previa (some markets)
• Toyota Harrier (Asian market)

Features & Benefits:

• Advanced Dual VVT-i system improves fuel efficiency and emissions
• Lightweight aluminum cylinder block and head
• Reliable chain-driven timing system for durability
• Strong low-end torque for smooth driving performance
• Well-known Toyota reliability and low maintenance costs

Perfect for replacement, rebuilds, or upgrades on compatible Toyota vehicles. Contact us for availability and shipping options.
