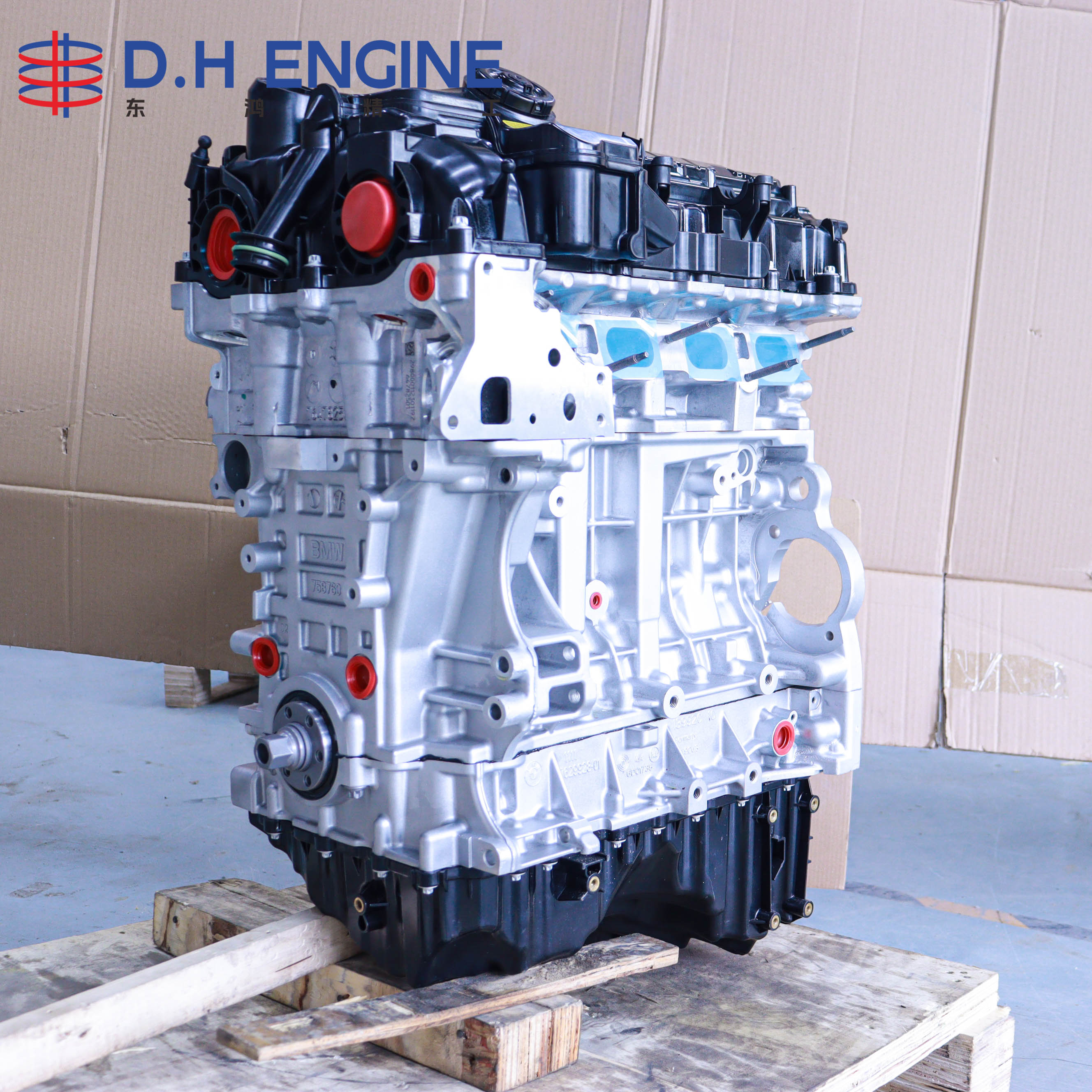

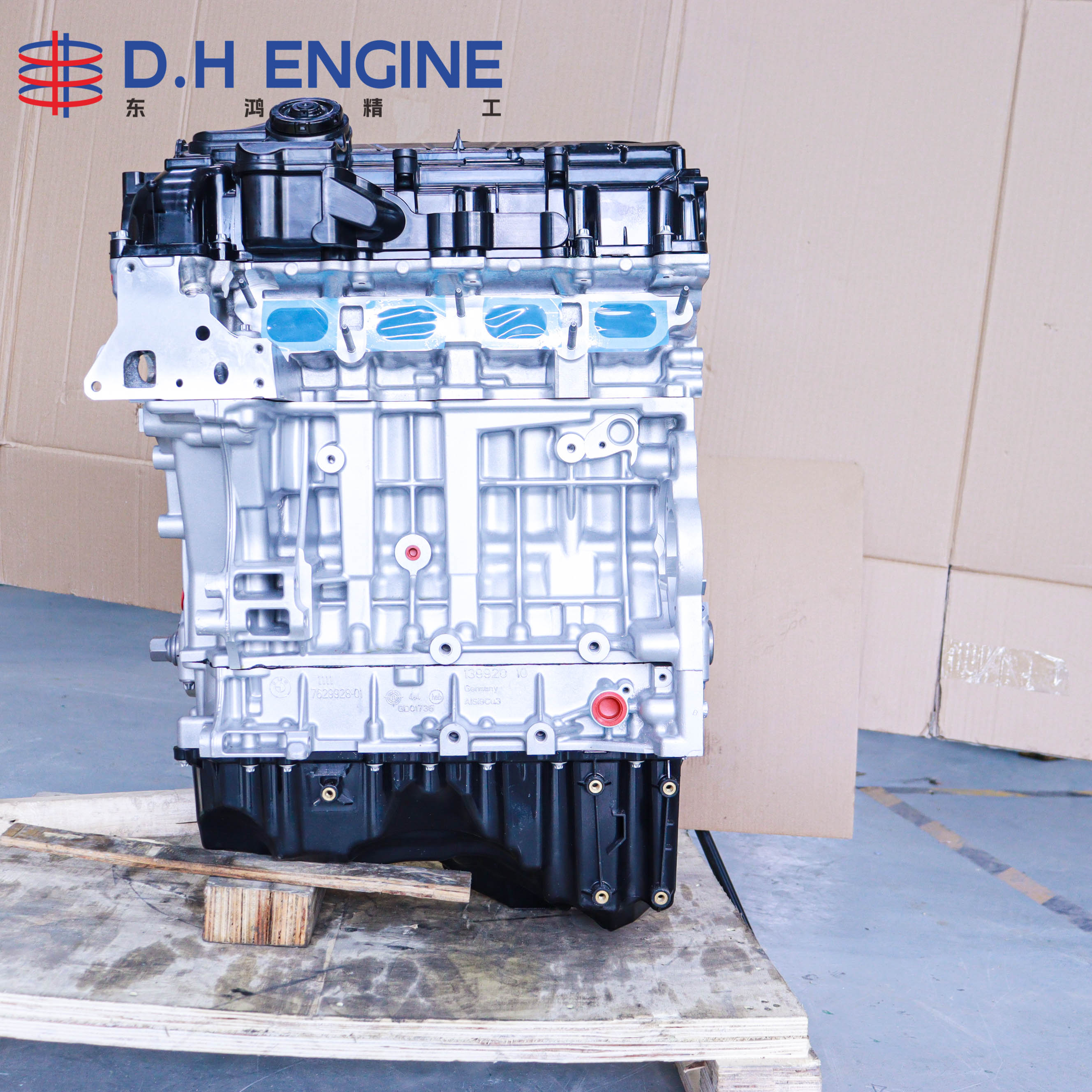

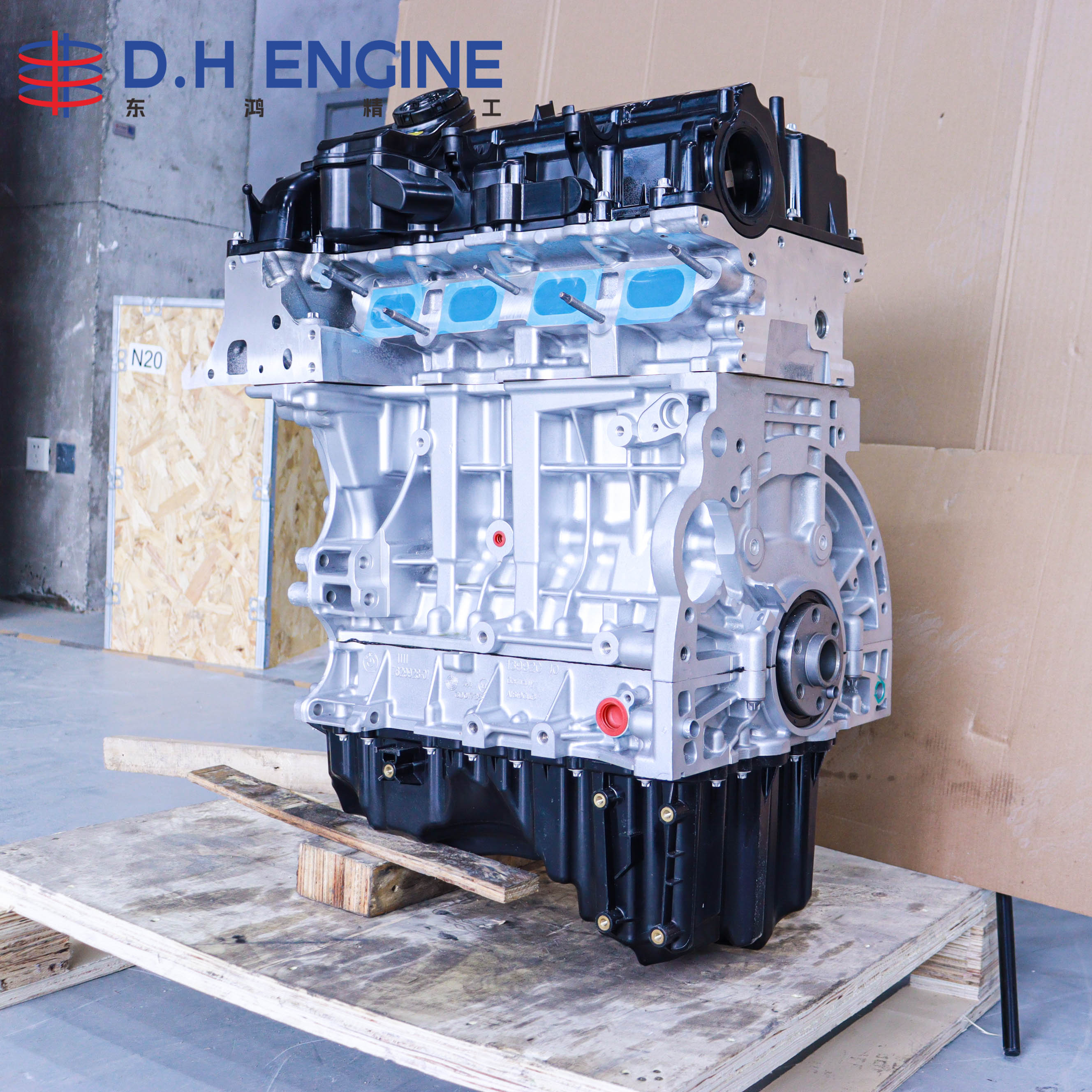

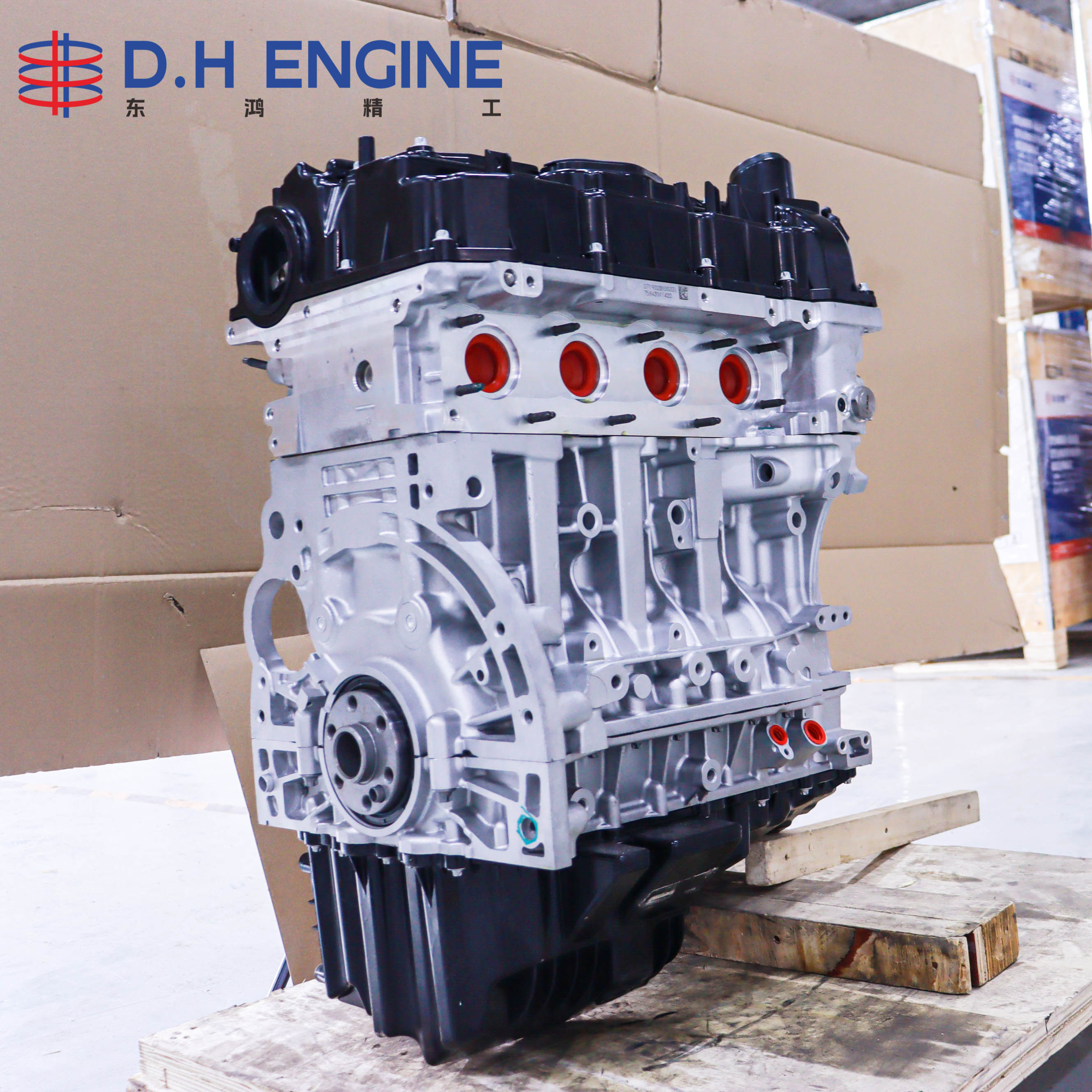

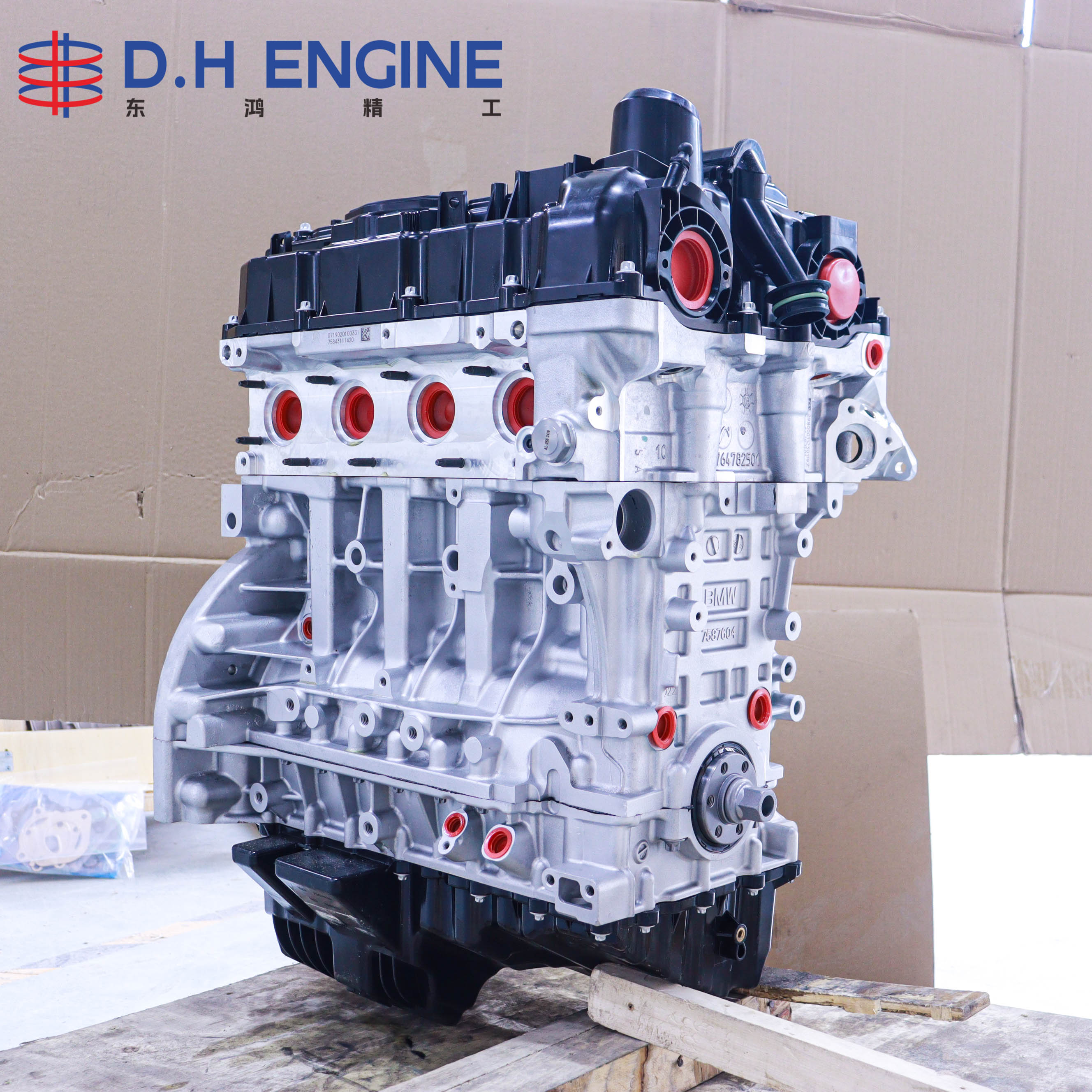

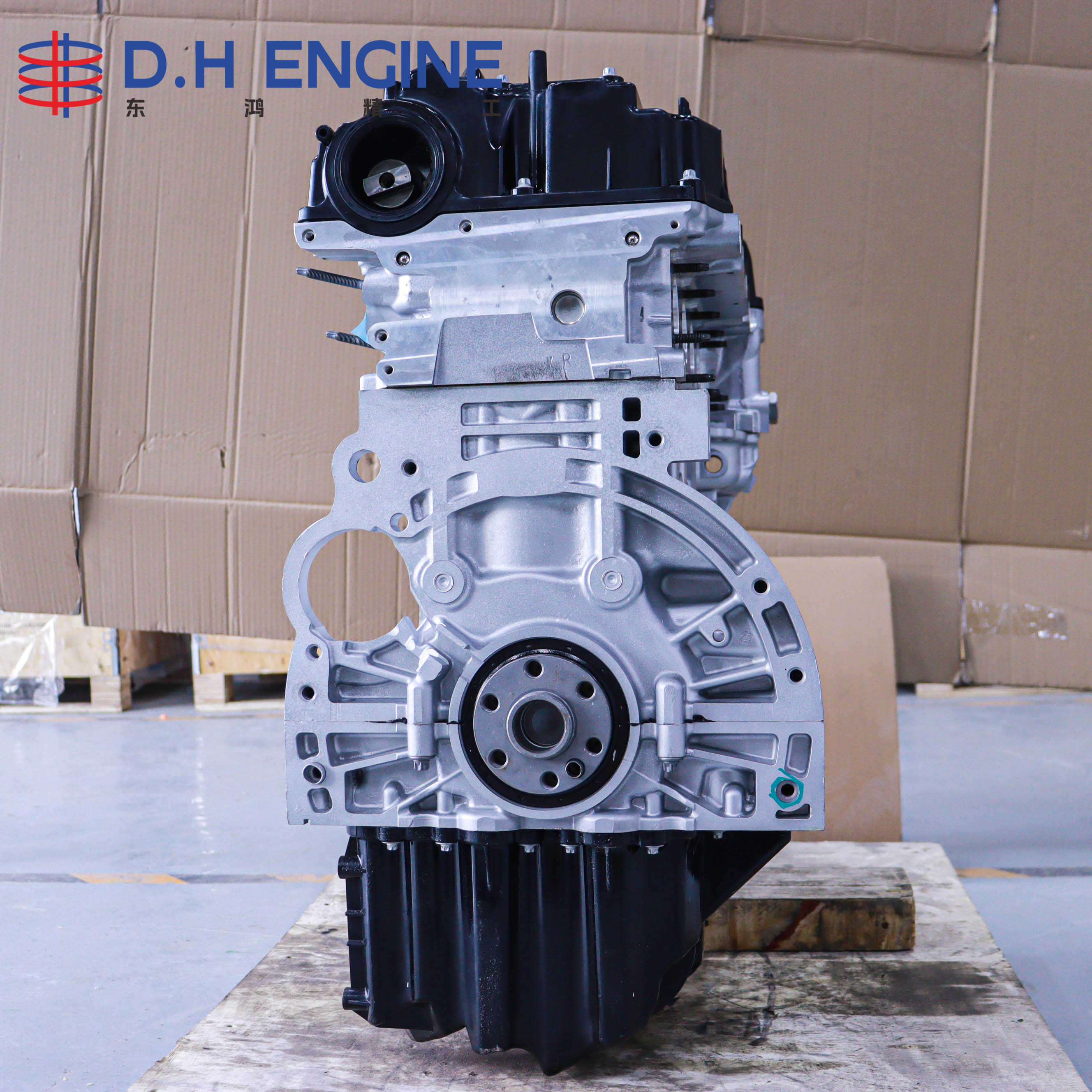

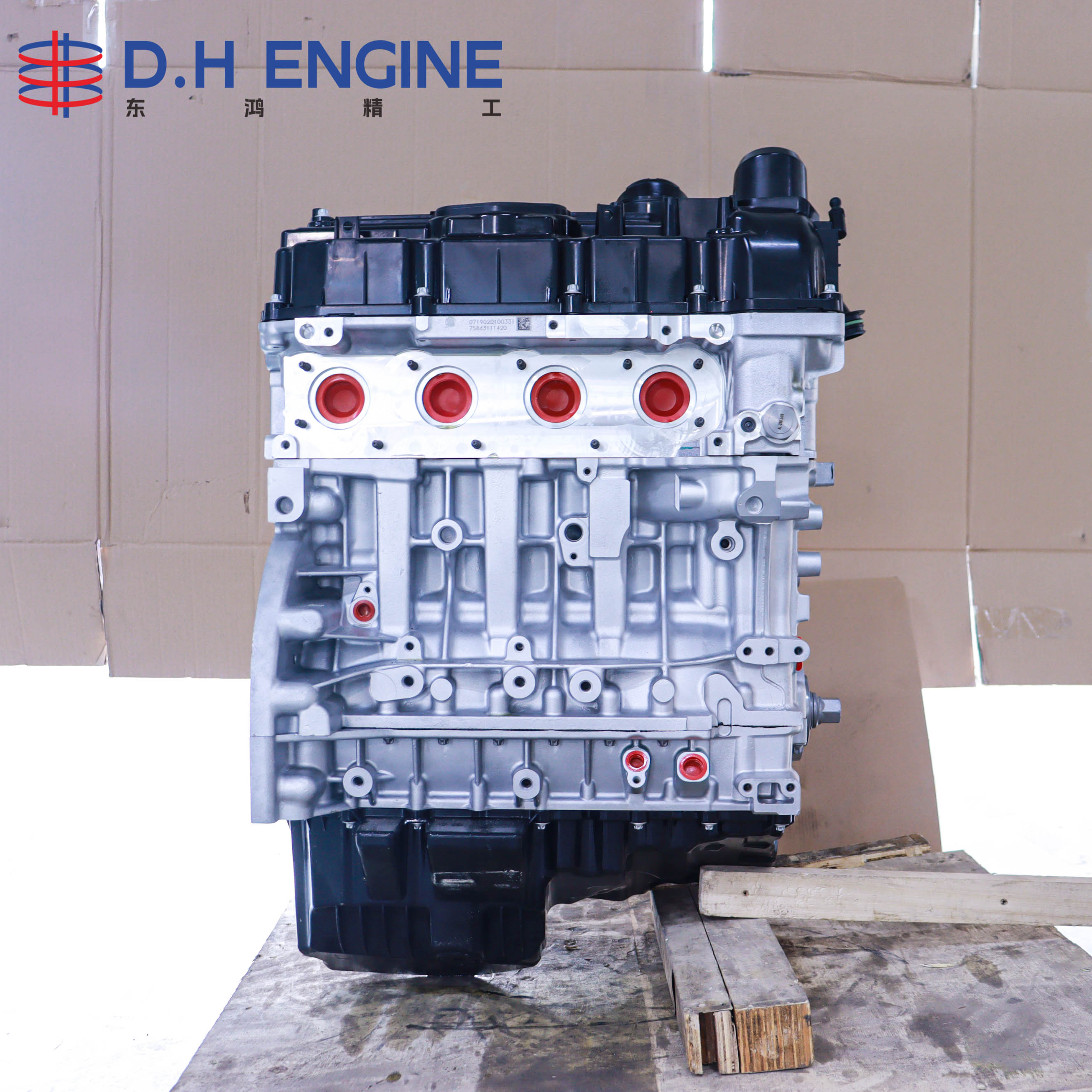

BMW N20B20 High-Performance Engine Long Block
Boost Your BMW’s Power with the N20B20 Turbocharged 245HP Engine Long Block
The BMW N20B20 High-Performance Engine Long Block is designed to deliver superior turbocharged performance. With a power output of 245 horsepower and 350Nm of torque, this engine is ideal for enhancing the performance of BMW 3 Series, 4 Series, X1, and other compatible models.
This engine incorporates advanced technologies like TwinPower Turbo, Double VANOS, and direct injection to offer exceptional power, fuel efficiency, and durability for both everyday driving and performance upgrades.
Engine Specifications
| Engine Model |
N20B20 High-Performance |
| Engine Type |
Inline 4-Cylinder, Turbocharged |
| Displacement |
1997cc (2.0L) |
| Bore × Stroke |
84.0 mm × 90.1 mm |
| Compression Ratio |
10.2 : 1 |
| Turbocharger |
TwinPower Turbo (Twin-scroll single turbo) |
| Fuel Injection |
Direct Injection (High Pressure) |
| Timing System |
Double VANOS (Variable Timing for Intake and Exhaust) |
| Valve System |
Valvetronic Electronic Valve Lift |
| Material |
All-Aluminum Cylinder Head and Block |
| Emission Standard |
Euro 6 |
Performance Output
- Maximum Power: 245 HP @ 5000–6500 rpm
- Maximum Torque: 350 N·m @ 1250–4500 rpm
Compatible Vehicles
The BMW N20B20 High-Performance Engine Long Block is designed for the following models:
- BMW 3 Series (F30/F31/F35): 320i, 328i, 330i
- BMW 4 Series (F32/F33/F36): 420i, 428i
- BMW X1 (F48): xDrive20i
- BMW Z4 (G29): Z4 20i
Ensure compatibility by verifying the engine code and vehicle model before purchase.
Key Features of the N20B20 High-Performance Engine
- Turbocharged Power: Delivers 245 HP and 350Nm of torque for an exhilarating driving experience.
- Fuel Efficiency: Optimized for reduced fuel consumption while maintaining high performance.
- Advanced Technology: Features BMW’s TwinPower Turbo and Double VANOS for enhanced engine response and power delivery.
- Durability: Built with an all-aluminum block for lightness and improved heat dissipation, ensuring long-term reliability.
- Performance Upgrade: Perfect for those looking to enhance their vehicle's performance for both street and racing applications.
Packaging & Shipping
- Export-quality wooden crate packaging
- Shipping options: sea freight and air freight available
- Bulk and wholesale orders supported
